• Drilling Machine for Pipes WS-4500CH

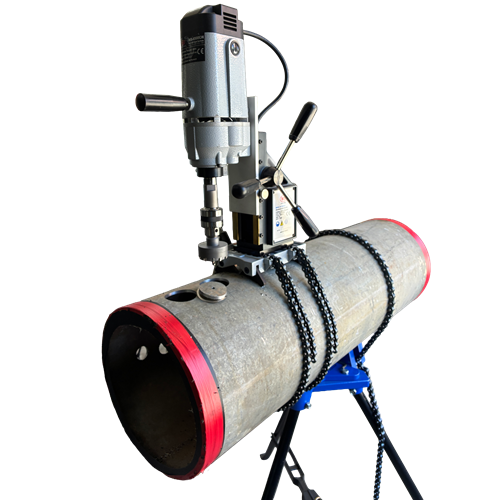

DRILLING MACHINE FOR PIPEDrilling Machine for Pipes WS-4500CH

WS-4500CH is a lightweight pipe drilling machine weighing only 14 kg. Its V-shaped fixed base, equipped with two heavy-duty chains, securely fastens the machine beneath pipes up to 200mm in diameter. A spirit level on the base ensures vertical drilling alignment, facilitating precise drilling even for multiple holes. The maximum cutting capacity of WS-4500CH is 45 mm in diameter.

Features

  • Special for round pipes or irregular objects use.
  • The spirit level design can align multiple holes and fix the machine accurately to avoid offset.

Specifications

MODEL
WS-4500CH
AMPACITY
15A (110V) | 7.5A (220V)
POWER CONSUMPTION
1850W
NO-LOAD SPEED
720rpm
DIMENSION
380 x 220 x 560 mm (Highest) | 380 x 220 x 460 mm (Lowest)
WEIGHT
14kg
MAX CUTTING CAPACITY
16mm (Diameter) for Twist Drill | 45mm (Diameter) for TCT Hole Saw
PIPE SIZE
32-200 mm (Diameter)
